Wilfried Hierold
- role
- author
- organization
- —
- —
- ORCID
- 0000-0002-6326-1238
- Street
- —
- Postal code
- —
- Location
- —
- country
- Deutschland
Profiles
V140 Leitprofil
KA5
Reference ID: 1013

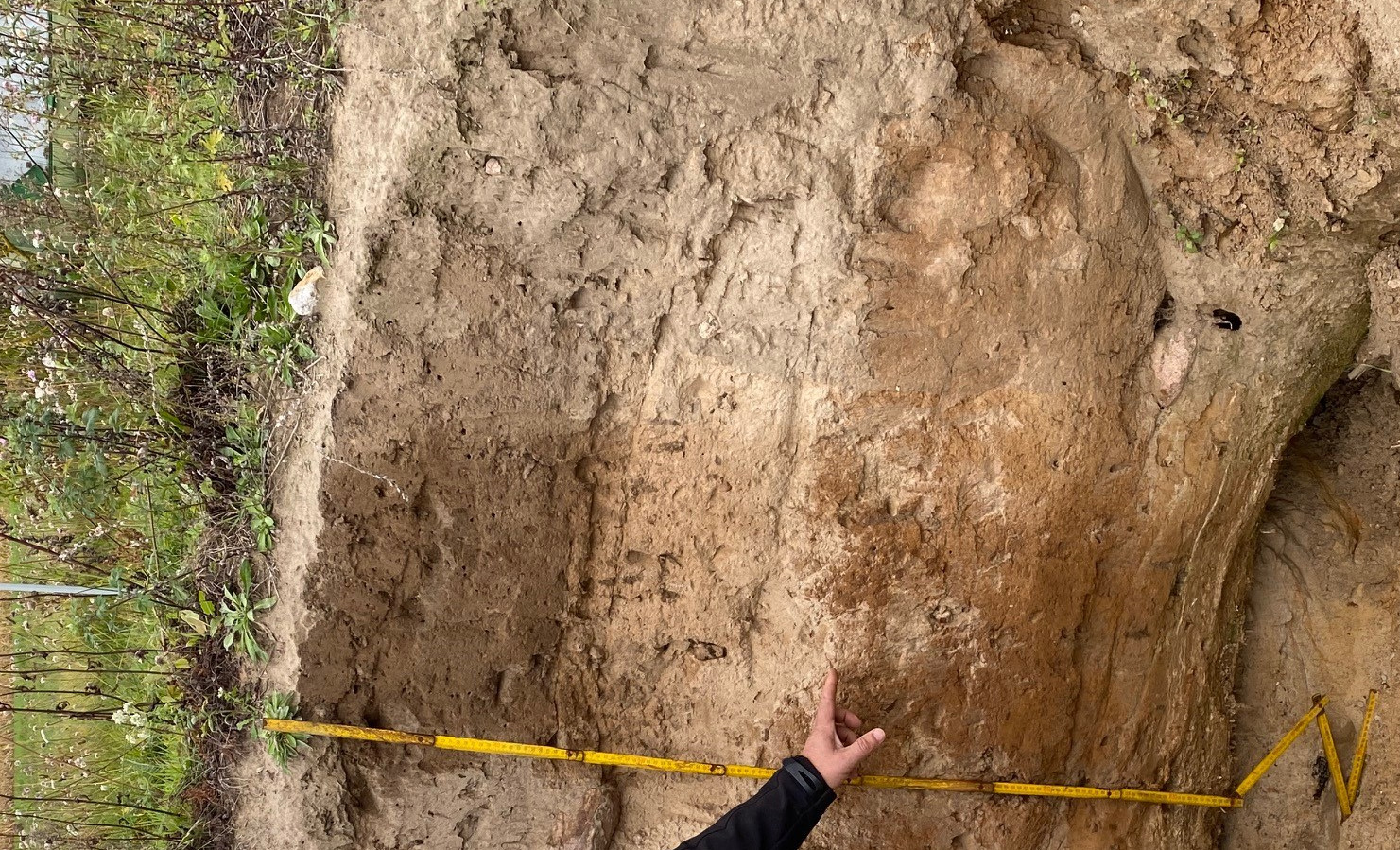

V140 Leitprofil
V140 Müncheberg Leitprofil von 2023
Digital Object Identifier https://doi.org/10.4228/zalf-g4a6-nb2w- Author
- Wilfried Hierold
- Date
- 27.05.2024
- Location
- 14.1226, 52.5171
- Status
- Public
- Profile is publicly visible
Pedon
No horizons present
Click on a horizon to open the detailed data.
Metadata
- Status
- Public
- Profile name
- V140 Leitprofil
- nomenclature
- KA5
- Recording date
- 07.11.2023
- Surveyor
- Wilfried Hierold
- project
- soils.ZALF
- Description
- V140 Müncheberg Leitprofil von 2023
- Project remark
- internes ZALF Projekt für die Organisation von Bodenprofilen vom ZALF, die nicht anderen Projekten zugeordnet werden.
Funding reference
- Funding name
- Leibniz Centre for Agricultural Landscape Research (ZALF)
- Award Number
- internal funding
- Funding agency
- ttps://ror.org/01ygyzs83
AGROVOC thesaurus
Contributing people
Nikolai Svoboda
Corresponding Author- role
- author
- organization
- Leibniz Centre for Agricultural Landscape Research
- svoboda@zalf.de
- ORCID
- 0000-0003-3860-4400
- Street
- Eberswalder Str. 84
- Postal code
- 15374
- Location
- Müncheberg
- country
- Deutschland
Suggested Citation
Hierold, W.; Svoboda, N. (2023). V140 Leitprofil. BonaRes Soil Profile Database. https://doi.org/10.4228/zalf-g4a6-nb2w
General Information
- Title data remark
- Daten zum V140 Langzeitfeldversuch: https://doi.org/10.20387/bonares-8fhj-r52g
- Type of digestion
- GS (Schürfgrube (Gesamtprofil > 1 m))
- Recording intensity
- N (Normale (vollständige) Profilaufnahme)
- weather
- —
- soil organisms
- —
- Soil appraisal: soil type/genesis
- Sl4D31
- Additional documents
- Alle Daten und Metadaten zum Langzeitfeldversuch (LTE) V140 sind im BonaRes Repositorium veröffentlicht. https://doi.org/10.20387/bonares-8fhj-r52g
- Classification according to WRB
- —
- Survey situation remark
- 17.10.2023
- Profile remark
- Ticket_Number:6206
Anthropogenic changes
—
Soil description
- Soil type (short)
- —
- Soil systematic unit: subtype
- BB-LF (Braunerde-Fahlerde)
- Soil systematic unit: variety
- v (Acker...)
- Soil systematic unit: subvariety
- —
- Substrate systematic unit: class
- s/l
- Substrate systematic unit: type
- P-(k)ls(Sp)/g-(K)sl(Mg)
- Substrate systematic unit: subtype
- p-(k)ls/gm-(k)sl(Mg)3/gm-(k)esl(Mg)3/fg-kcss(Sgf)
- Humus form
- MUT (L-Mull)
Relief and or erosion information
- Inclination
- N0.1 (nicht geneigt bis kaum geneigt)
- Exposure
- —
- curvature
- G,G (vertikal gestreckt, horizontal gestreckt)
- Relief shape type
- V (Verebnung)
- Metric data on relief form type
- >500
- Micro-relief
- RE (glatt, eben)
- Location in relief
- Z (Zentrallage)
- Soil erosion/deposition processes
- —
- Soil erosion/deposition features
- —
- degree of erosion
- Eg0 (nicht feststellbar)
Use and vegetation
- Type of use/sealing
- A (Acker allgemein)
- Vegetation coverage level
- GR (Gräser (Ackergras temporär))
- Vegetation area proportion
- 100 (100)
Hydromorphological information
- GWS
- GWS5 (sehr tief)
- Water level below surface
- —
- Degree of waterlogging
- Vn0 (nicht vernässt)
horizon 1 — Ap
0.0–38.0 cm
horizon 1 — Ap
0.0–38.0 cm
menu_book
Atlas
Ap (Ap)
h2 (schwach humos)
c0 (carbonatfrei)
feu2 (schwach feucht)
Su2 (schwach schluffiger Sand)
Identification
- Horizon number
- 1
- Symbol (prefix)
- —
- Horizon symbol
- Ap (Ap)
- Symbol (suffix)
- —
- Upper limit (cm)
- —
- Lower limit (cm)
- 38.0
Morphology / Description
- Form, sharpness and length
- e,sc,h (ebenförmig (glatt), Übergang scharf, Grenze horizontal)
- Soil colour (free text)
- —
- Humus content
- h2 (schwach humos)
- Carbon content
- —
- Carbonate content
- c0 (carbonatfrei)
Hydromorphism
- Hydromorphic oxidative
- —
- Oxidative: form
- —
- Oxidative: degree of expression
- —
- Oxidative: area proportion
- —
- Oxidative: size
- —
- Hydromorphic reductive
- —
- Reductive: form
- —
- Reductive: degree of expression
- —
- Reductive: area proportion
- —
- Reductive: size
- —
- Soil moisture
- feu2 (schwach feucht)
Structure
- Other pedogenic features
- —
- Other: appearance
- —
- Other: degree of expression
- —
- Other: area proportion
- —
- Other: size
- —
- Aggregate packing type
- h (halboffen)
- Crack width
- —
- Pores
- Pa,f4,gri4 (weit, Mikroskala, 2,0 - < 5,0 mm, Vol.-% hoch)
- Tubes/channels
- Rwu (Wurzelröhren)
Rooting and consistency
- Fine roots
- —
- Coarse roots
- —
- Bulk density/decomposition stage
- —
- Consistency
- ko2 (halbfest (bröckelig))
Substrate
- Substrate type
- P-(k)Ls
- Substrate genesis
- p (periglaziär)
- Texture of fine soil
- Su2 (schwach schluffiger Sand)
- Total coarse fragments
- 2
- Coarse soil fractions/proportions
- —
- Parent rock
- Sp ((Geschiebe-)Decksand)
- Periglacial layers
- LH (Hauptlage)
- Coarse soil components
- —
- Substantial inhomogeneity
- —
- Structural inhomogeneity
- K (kryogene Frostbodenerscheinungen)
- Stratigraphy
- qp (Pleistozän)
- Air capacity
- —
- Saturated hydraulic conductivity
- —
- Layer
- —
Extended details
Soil colour
- 10YR8/1 (light gray 10YR8/1)
Coarse soil fractions and proportion classes
- gO2 (gerundete Großblöcke, schwach)
Structure form and aggregate size
- ein (Einzelkorngefüge)
horizon 2 — Bv-Ael
38.0–47.0 cm
horizon 2 — Bv-Ael
38.0–47.0 cm
menu_book
Atlas
Bv-Ael (Bv-Ael)
h1 (sehr schwach humos)
c0 (carbonatfrei)
feu2 (schwach feucht)
Su2 (schwach schluffiger Sand)
Identification
- Horizon number
- 2
- Symbol (prefix)
- —
- Horizon symbol
- Bv-Ael (Bv-Ael)
- Symbol (suffix)
- —
- Upper limit (cm)
- 38.0
- Lower limit (cm)
- 47.0
Morphology / Description
- Form, sharpness and length
- e,de,h (ebenförmig (glatt), Übergang deutlich, Grenze horizontal)
- Soil colour (free text)
- —
- Humus content
- h1 (sehr schwach humos)
- Carbon content
- —
- Carbonate content
- c0 (carbonatfrei)
Hydromorphism
- Hydromorphic oxidative
- —
- Oxidative: form
- —
- Oxidative: degree of expression
- —
- Oxidative: area proportion
- —
- Oxidative: size
- —
- Hydromorphic reductive
- —
- Reductive: form
- —
- Reductive: degree of expression
- —
- Reductive: area proportion
- —
- Reductive: size
- —
- Soil moisture
- feu2 (schwach feucht)
Structure
- Other pedogenic features
- —
- Other: appearance
- —
- Other: degree of expression
- —
- Other: area proportion
- —
- Other: size
- —
- Aggregate packing type
- h (halboffen)
- Crack width
- —
- Pores
- —
- Tubes/channels
- Rwu (Wurzelröhren)
Rooting and consistency
- Fine roots
- —
- Coarse roots
- —
- Bulk density/decomposition stage
- —
- Consistency
- ko1 (fest (hart))
Substrate
- Substrate type
- P-(k)Ls
- Substrate genesis
- p (periglaziär)
- Texture of fine soil
- Su2 (schwach schluffiger Sand)
- Total coarse fragments
- 2
- Coarse soil fractions/proportions
- —
- Parent rock
- Sp ((Geschiebe-)Decksand)
- Periglacial layers
- LH (Hauptlage)
- Coarse soil components
- keine Angabe (keine Angabe)
- Substantial inhomogeneity
- —
- Structural inhomogeneity
- K (kryogene Frostbodenerscheinungen)
- Stratigraphy
- qp (Pleistozän)
- Air capacity
- —
- Saturated hydraulic conductivity
- —
- Layer
- —
Extended details
Soil colour
- 10YR7/2 (dull yellow orange 10YR7/2)
Coarse soil fractions and proportion classes
- gO2 (gerundete Großblöcke, schwach)
Structure form and aggregate size
- ein (Einzelkorngefüge)
horizon 3 — Ael
47.0–66.0 cm
horizon 3 — Ael
47.0–66.0 cm
menu_book
Atlas
Ael (Ael)
h0 (humusfrei)
c0 (carbonatfrei)
feu2 (schwach feucht)
Su2 (schwach schluffiger Sand)
Identification
- Horizon number
- 3
- Symbol (prefix)
- —
- Horizon symbol
- Ael (Ael)
- Symbol (suffix)
- —
- Upper limit (cm)
- 47.0
- Lower limit (cm)
- 66.0
Morphology / Description
- Form, sharpness and length
- z,de,h (zungen-, bzw. taschenförmig, Übergang deutlich, Grenze horizontal)
- Soil colour (free text)
- —
- Humus content
- h0 (humusfrei)
- Carbon content
- —
- Carbonate content
- c0 (carbonatfrei)
Hydromorphism
- Hydromorphic oxidative
- —
- Oxidative: form
- —
- Oxidative: degree of expression
- —
- Oxidative: area proportion
- —
- Oxidative: size
- —
- Hydromorphic reductive
- —
- Reductive: form
- —
- Reductive: degree of expression
- —
- Reductive: area proportion
- —
- Reductive: size
- —
- Soil moisture
- feu2 (schwach feucht)
Structure
- Other pedogenic features
- —
- Other: appearance
- —
- Other: degree of expression
- —
- Other: area proportion
- —
- Other: size
- —
- Aggregate packing type
- h (halboffen)
- Crack width
- —
- Pores
- —
- Tubes/channels
- Rwu (Wurzelröhren)
Rooting and consistency
- Fine roots
- —
- Coarse roots
- —
- Bulk density/decomposition stage
- —
- Consistency
- ko2 (halbfest (bröckelig))
Substrate
- Substrate type
- p-(k)ls
- Substrate genesis
- p (periglaziär)
- Texture of fine soil
- Su2 (schwach schluffiger Sand)
- Total coarse fragments
- 2
- Coarse soil fractions/proportions
- —
- Parent rock
- Sp ((Geschiebe-)Decksand)
- Periglacial layers
- LB (Basislage)
- Coarse soil components
- —
- Substantial inhomogeneity
- —
- Structural inhomogeneity
- K (kryogene Frostbodenerscheinungen)
- Stratigraphy
- qp (Pleistozän)
- Air capacity
- —
- Saturated hydraulic conductivity
- —
- Layer
- —
Extended details
Soil colour
- 10YR8/2 (light gray 10YR8/2)
Coarse soil fractions and proportion classes
- gO2 (gerundete Großblöcke, schwach)
Structure form and aggregate size
- ein (Einzelkorngefüge)
horizon 4 — Ael+Bt
66.0–85.0 cm
horizon 4 — Ael+Bt
66.0–85.0 cm
menu_book
Atlas
Ael+Bt (Ael+Bt)
h0 (humusfrei)
c0 (carbonatfrei)
feu2 (schwach feucht)
Su2 (schwach schluffiger Sand)
Identification
- Horizon number
- 4
- Symbol (prefix)
- —
- Horizon symbol
- Ael+Bt (Ael+Bt)
- Symbol (suffix)
- —
- Upper limit (cm)
- 66.0
- Lower limit (cm)
- 85.0
Morphology / Description
- Form, sharpness and length
- t,de,h (tropfenförmig, Übergang deutlich, Grenze horizontal)
- Soil colour (free text)
- —
- Humus content
- h0 (humusfrei)
- Carbon content
- —
- Carbonate content
- c0 (carbonatfrei)
Hydromorphism
- Hydromorphic oxidative
- —
- Oxidative: form
- —
- Oxidative: degree of expression
- —
- Oxidative: area proportion
- —
- Oxidative: size
- —
- Hydromorphic reductive
- —
- Reductive: form
- —
- Reductive: degree of expression
- —
- Reductive: area proportion
- —
- Reductive: size
- —
- Soil moisture
- feu2 (schwach feucht)
Structure
- Other pedogenic features
- —
- Other: appearance
- —
- Other: degree of expression
- —
- Other: area proportion
- —
- Other: size
- —
- Aggregate packing type
- h (halboffen)
- Crack width
- —
- Pores
- —
- Tubes/channels
- Rwu (Wurzelröhren)
Rooting and consistency
- Fine roots
- —
- Coarse roots
- —
- Bulk density/decomposition stage
- —
- Consistency
- ko2 (halbfest (bröckelig))
Substrate
- Substrate type
- p(k)ls + gm-sl
- Substrate genesis
- p (periglaziär)
- Texture of fine soil
- Su2 (schwach schluffiger Sand)
- Total coarse fragments
- 2
- Coarse soil fractions/proportions
- —
- Parent rock
- Lg (Geschiebelehm)
- Periglacial layers
- LB (Basislage)
- Coarse soil components
- —
- Substantial inhomogeneity
- —
- Structural inhomogeneity
- K (kryogene Frostbodenerscheinungen)
- Stratigraphy
- qp (Pleistozän)
- Air capacity
- —
- Saturated hydraulic conductivity
- —
- Layer
- —
Extended details
Soil colour
- 10YR8/2 (light gray 10YR8/2)
Coarse soil fractions and proportion classes
- gO2 (gerundete Großblöcke, schwach)
Structure form and aggregate size
- pol (Polyedergefüge)
horizon 5 — Bt
85.0–112.0 cm
horizon 5 — Bt
85.0–112.0 cm
menu_book
Atlas
Bt (Bt)
h0 (humusfrei)
c0 (carbonatfrei)
feu2 (schwach feucht)
Sl4 (stark lehmiger Sand)
Identification
- Horizon number
- 5
- Symbol (prefix)
- —
- Horizon symbol
- Bt (Bt)
- Symbol (suffix)
- —
- Upper limit (cm)
- 85.0
- Lower limit (cm)
- 112.0
Morphology / Description
- Form, sharpness and length
- w,de,h (wellig, Übergang deutlich, Grenze horizontal)
- Soil colour (free text)
- —
- Humus content
- h0 (humusfrei)
- Carbon content
- —
- Carbonate content
- c0 (carbonatfrei)
Hydromorphism
- Hydromorphic oxidative
- ed (dunkelrostfarben)
- Oxidative: form
- fl (Flecken, fleckig)
- Oxidative: degree of expression
- —
- Oxidative: area proportion
- f2 (gering)
- Oxidative: size
- —
- Hydromorphic reductive
- —
- Reductive: form
- —
- Reductive: degree of expression
- —
- Reductive: area proportion
- —
- Reductive: size
- —
- Soil moisture
- feu2 (schwach feucht)
Structure
- Other pedogenic features
- —
- Other: appearance
- —
- Other: degree of expression
- —
- Other: area proportion
- —
- Other: size
- —
- Aggregate packing type
- g (geschlossen)
- Crack width
- —
- Pores
- —
- Tubes/channels
- Rwu (Wurzelröhren)
Rooting and consistency
- Fine roots
- —
- Coarse roots
- —
- Bulk density/decomposition stage
- —
- Consistency
- ko2 (halbfest (bröckelig))
Substrate
- Substrate type
- gm-(k)sl
- Substrate genesis
- gm (als Grundmoräne)
- Texture of fine soil
- Sl4 (stark lehmiger Sand)
- Total coarse fragments
- 3
- Coarse soil fractions/proportions
- —
- Parent rock
- Lg (Geschiebelehm)
- Periglacial layers
- LB (Basislage)
- Coarse soil components
- —
- Substantial inhomogeneity
- —
- Structural inhomogeneity
- K (kryogene Frostbodenerscheinungen)
- Stratigraphy
- qp (Pleistozän)
- Air capacity
- —
- Saturated hydraulic conductivity
- —
- Layer
- —
Extended details
Soil colour
- 7.5YR4/6 (brown 7.5YR4/6)
Coarse soil fractions and proportion classes
- gO3 (gerundete Großblöcke, mittel)
Structure form and aggregate size
- pol (Polyedergefüge)
horizon 6 — Bv
112.0–125.0 cm
horizon 6 — Bv
112.0–125.0 cm
menu_book
Atlas
Bv (Bv)
h0 (humusfrei)
c0 (carbonatfrei)
feu2 (schwach feucht)
Sl3 (mittel lehmiger Sand)
Identification
- Horizon number
- 6
- Symbol (prefix)
- —
- Horizon symbol
- Bv (Bv)
- Symbol (suffix)
- —
- Upper limit (cm)
- 112.0
- Lower limit (cm)
- 125.0
Morphology / Description
- Form, sharpness and length
- e,de,h (ebenförmig (glatt), Übergang deutlich, Grenze horizontal)
- Soil colour (free text)
- —
- Humus content
- h0 (humusfrei)
- Carbon content
- —
- Carbonate content
- c0 (carbonatfrei)
Hydromorphism
- Hydromorphic oxidative
- ed (dunkelrostfarben)
- Oxidative: form
- fl (Flecken, fleckig)
- Oxidative: degree of expression
- —
- Oxidative: area proportion
- f3 (mittel)
- Oxidative: size
- —
- Hydromorphic reductive
- —
- Reductive: form
- —
- Reductive: degree of expression
- —
- Reductive: area proportion
- —
- Reductive: size
- —
- Soil moisture
- feu2 (schwach feucht)
Structure
- Other pedogenic features
- —
- Other: appearance
- —
- Other: degree of expression
- —
- Other: area proportion
- —
- Other: size
- —
- Aggregate packing type
- g (geschlossen)
- Crack width
- —
- Pores
- —
- Tubes/channels
- Rwu (Wurzelröhren)
Rooting and consistency
- Fine roots
- —
- Coarse roots
- —
- Bulk density/decomposition stage
- —
- Consistency
- ko2 (halbfest (bröckelig))
Substrate
- Substrate type
- gm-sl
- Substrate genesis
- gm (als Grundmoräne)
- Texture of fine soil
- Sl3 (mittel lehmiger Sand)
- Total coarse fragments
- 2
- Coarse soil fractions/proportions
- —
- Parent rock
- —
- Periglacial layers
- —
- Coarse soil components
- —
- Substantial inhomogeneity
- —
- Structural inhomogeneity
- K (kryogene Frostbodenerscheinungen)
- Stratigraphy
- qp (Pleistozän)
- Air capacity
- —
- Saturated hydraulic conductivity
- —
- Layer
- —
Extended details
Soil colour
- 7.5YR4/4 (brown 7.5YR4/4)
Coarse soil fractions and proportion classes
- gO2 (gerundete Großblöcke, schwach)
Structure form and aggregate size
- koh (Kohärentgefüge)
horizon 7 — Cc
125.0–145.0 cm
horizon 7 — Cc
125.0–145.0 cm
menu_book
Atlas
Cc (Cc)
h0 (humusfrei)
c0 (carbonatfrei)
feu2 (schwach feucht)
Sl3 (mittel lehmiger Sand)
Identification
- Horizon number
- 7
- Symbol (prefix)
- el
- Horizon symbol
- Cc (Cc)
- Symbol (suffix)
- v
- Upper limit (cm)
- 125.0
- Lower limit (cm)
- 145.0
Morphology / Description
- Form, sharpness and length
- e,sc,h (ebenförmig (glatt), Übergang scharf, Grenze horizontal)
- Soil colour (free text)
- —
- Humus content
- h0 (humusfrei)
- Carbon content
- —
- Carbonate content
- c0 (carbonatfrei)
Hydromorphism
- Hydromorphic oxidative
- ed (dunkelrostfarben)
- Oxidative: form
- fl (Flecken, fleckig)
- Oxidative: degree of expression
- —
- Oxidative: area proportion
- f2 (gering)
- Oxidative: size
- —
- Hydromorphic reductive
- —
- Reductive: form
- —
- Reductive: degree of expression
- —
- Reductive: area proportion
- —
- Reductive: size
- —
- Soil moisture
- feu2 (schwach feucht)
Structure
- Other pedogenic features
- —
- Other: appearance
- —
- Other: degree of expression
- —
- Other: area proportion
- —
- Other: size
- —
- Aggregate packing type
- g (geschlossen)
- Crack width
- —
- Pores
- —
- Tubes/channels
- —
Rooting and consistency
- Fine roots
- —
- Coarse roots
- —
- Bulk density/decomposition stage
- —
- Consistency
- ko2 (halbfest (bröckelig))
Substrate
- Substrate type
- gm-esl
- Substrate genesis
- gm (als Grundmoräne)
- Texture of fine soil
- Sl3 (mittel lehmiger Sand)
- Total coarse fragments
- 2
- Coarse soil fractions/proportions
- —
- Parent rock
- Mg (Geschiebemergel)
- Periglacial layers
- LB (Basislage)
- Coarse soil components
- —
- Substantial inhomogeneity
- —
- Structural inhomogeneity
- S (Schichtungen)
- Stratigraphy
- qp (Pleistozän)
- Air capacity
- —
- Saturated hydraulic conductivity
- —
- Layer
- —
Extended details
Soil colour
- 10YR5/6 (yellowish brown 10YR5/6)
Coarse soil fractions and proportion classes
- gO2 (gerundete Großblöcke, schwach)
horizon 8 — Cc
145.0–160.0 cm
horizon 8 — Cc
145.0–160.0 cm
menu_book
Atlas
Cc (Cc)
h0 (humusfrei)
c0 (carbonatfrei)
feu2 (schwach feucht)
mSgs (grobsandiger Mittelsand)
Identification
- Horizon number
- 8
- Symbol (prefix)
- el
- Horizon symbol
- Cc (Cc)
- Symbol (suffix)
- —
- Upper limit (cm)
- 145.0
- Lower limit (cm)
- 160.0
Morphology / Description
- Form, sharpness and length
- —
- Soil colour (free text)
- —
- Humus content
- h0 (humusfrei)
- Carbon content
- —
- Carbonate content
- c0 (carbonatfrei)
Hydromorphism
- Hydromorphic oxidative
- ed (dunkelrostfarben)
- Oxidative: form
- bae (Bänder, bänderartig)
- Oxidative: degree of expression
- —
- Oxidative: area proportion
- f3 (mittel)
- Oxidative: size
- —
- Hydromorphic reductive
- —
- Reductive: form
- —
- Reductive: degree of expression
- —
- Reductive: area proportion
- —
- Reductive: size
- —
- Soil moisture
- feu2 (schwach feucht)
Structure
- Other pedogenic features
- —
- Other: appearance
- —
- Other: degree of expression
- —
- Other: area proportion
- —
- Other: size
- —
- Aggregate packing type
- h (halboffen)
- Crack width
- —
- Pores
- —
- Tubes/channels
- —
Rooting and consistency
- Fine roots
- —
- Coarse roots
- —
- Bulk density/decomposition stage
- —
- Consistency
- ko2 (halbfest (bröckelig))
Substrate
- Substrate type
- fg-e(k)ss
- Substrate genesis
- fg (glazifluviatil)
- Texture of fine soil
- mSgs (grobsandiger Mittelsand)
- Total coarse fragments
- 3
- Coarse soil fractions/proportions
- —
- Parent rock
- Sgf (Schmelzwassersand)
- Periglacial layers
- —
- Coarse soil components
- —
- Substantial inhomogeneity
- —
- Structural inhomogeneity
- S (Schichtungen)
- Stratigraphy
- qp (Pleistozän)
- Air capacity
- —
- Saturated hydraulic conductivity
- —
- Layer
- —
Extended details
Soil colour
- 10YR8/1 (light gray 10YR8/1)
Structure form and aggregate size
- ein (Einzelkorngefüge)
Horizont Symbol wurde mit "C" angegeben.
No samples available
localization
- GeoJSON coordinates
- 14.1226, 52.5171
- Elevation above sea level
- —
- Topographic map sheet no.
- —
- Country
- Deutschland
- Federal State
- Brandenburg
- Place name
- Müncheberg
- remark
- Versuchsfläche V140 vom Leibniz-Zentrum für Agrarlandschaftsforschung (ZALF) e.V.
Attachments
bonares_bp_db/1012/v140_profil_a.jpg
Thumbnail
Download file
bonares_bp_db/1013/V140_Aufnahmebogen_original.pdf
Original Aufnahmeboden, Handschrift Wilfried
Download filebonares_bp_db/1013/V140_Aufnahmebogen_Abschrift.pdf
Abschrift original Aufnahmebogen mit Kommentaren
Download filebonares_bp_db/1013/bonares-8fhj-r52g1
Alle Daten und Metadaten zum Langzeitfeldversuch (LTE) V140 sind im BonaRes Repositorium veröffentlicht. https://doi.org/10.20387/bonares-8fhj-r52g
Download file
